chassis
Mid Tower
Trinity

Trinity-SP

APEVIA Trinity Metal Case w/ 4 Tempered Glass Windows & 6 RGB Fans

Apevia Trinity mid tower with four full-size tempered glass windows, top USB3.0/USB2.0/audio ports, 6 RGB fans

user manual

The awe-inspiring Apevia Trinity Mid Tower features a four-sided tinted tempered glass panel construction that is built to last and feels solid like a tank. We added little details such as our Apevia logo in LED on the front panel to include a bit more style, and 58 slitted air vents on each side of the case; a total of 116 air vents to establish proper air circulation for your peripherals inside the case. The benefit of a complete glass panel case allows for a gorgeous view of all six LED RGB fans installed in the case while showing off your beautiful build. The inside is incredibly spacious with the capability to fit VGA cards up to 390mm so you can install your best performing graphics card with confidence. The Trinity case is excellent for gamers or users who love a timeless design.

  • Modern metal mid tower with four tempered glass windows
  • Full-size tempered glass windows lets you see the entire inside of your build
  • Plenty of room on the back side to hide and route cables
  • Room for up to 2 2.5" hard drives and 2 3.5" hard drives
  • Top panel comes with 2 x USB 2.0, 2 x USB 3.0, and HD Audio jacks

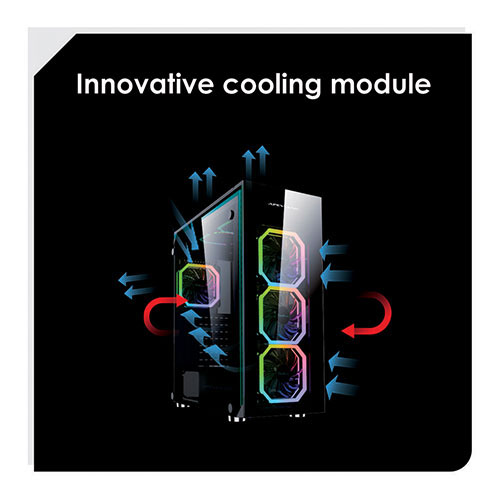

  • A total of 116 slitted air vents (58 on each side panel) to establish proper air circulation for the peripherals inside the case
  • Can fit expansion cards up to 390mm in length and CPU coolers up to 165mm in height
  • Room for up to 8 120mm fans or 360/240 water cooling options
  • Options for 3 types of RGB fan. Fans are proprietary to this case. If you wish to purchase more, feel free to contact us.
Model No.
Trinity-SP
Case Material
Metal
Color
RGB
Main board
Standard ATX / Micro ATX / ITX
Window
Yes
Power Supply
N/A
Drive Space
2x3.5" (hidden) / 2x2.5" (hidden)
Motherboard size
up to 11" x 12"
Expansion Slots
7
Front Panel Switch
Power / Reset / Fan LED
Front Access Ports
2 x USB 3.0, 2 x USB 2.0, 2 x HD Audio
Cooling Fan Space
Up to 8 x case fans: 3 x 120mm RGB fan - front (included) / 2 x 120mm RGB fan - top (included) / 1 x 120mm RGB fan - rear (included) / 2 x 120mm fan - bottom (optional)
Video Card Length
Up to 390mm
CPU Cooler Height
Up to 6.5"
Front Thermometer
N/A
Front Fan Controller
N/A
Led Display
Power / HDD
Product Weight
21.38 lbs
Product Dimensions(DxWxH)
17" x 8.25" x 19.25"
Cu'ft
3.22'
