Power supply
1000W+

ATX-GX1000W ATX 3.0 & PCIE 5.0

1000W+

Apevia 1000W Galaxy PCIE 5.0 series power supply, 80+ Gold certified, comes with PCle 5.0 / Gen 5 12VHPWR (12pin+4pin) GPU connector, ATX 3.0 + PCIE 5.0 ready, 135MM auto thermally controlled silent black fan

user manual

The Apevia Galaxy series of power supplies from Apevia unites style and performance to meet your system requirements with power options of 850W and 1000W. Designed for gaming, the Galaxy PCIE 5.0 power supply has an impressive 80+ Gold certification and features the cutting-edge PCle 5.0 / Gen 5 12VHPWR 12+4 (12pin/16pin) GPU connector, ensuring seamless power delivery to advanced PCIe 5.0 high-end graphics cards. They fully support the latest ATX 12v2.3 standard and utilize a single rail setup for enhanced performance. The sleek and stealthy 135mm auto-thermally controlled black fan not only keeps your computer cool but also controls the fan speed depending on your power usage. The Galaxy line features a semi-modular cable configuration, allowing you to use only the necessary connectors and store unused plugs for future use, reducing wire management. Active PFC technology is incorporated, boasting an impressive 99% power factor correction for improved efficiency and energy savings. With automatic voltage adjustment between 110V and 230V based on the power grid, manual toggling is no longer necessary. The power supply also includes an imprinted Apevia logo and a unique vent design for a premium touch.

  • 1000W Power with 135mm auto thermally controlled silent black fan

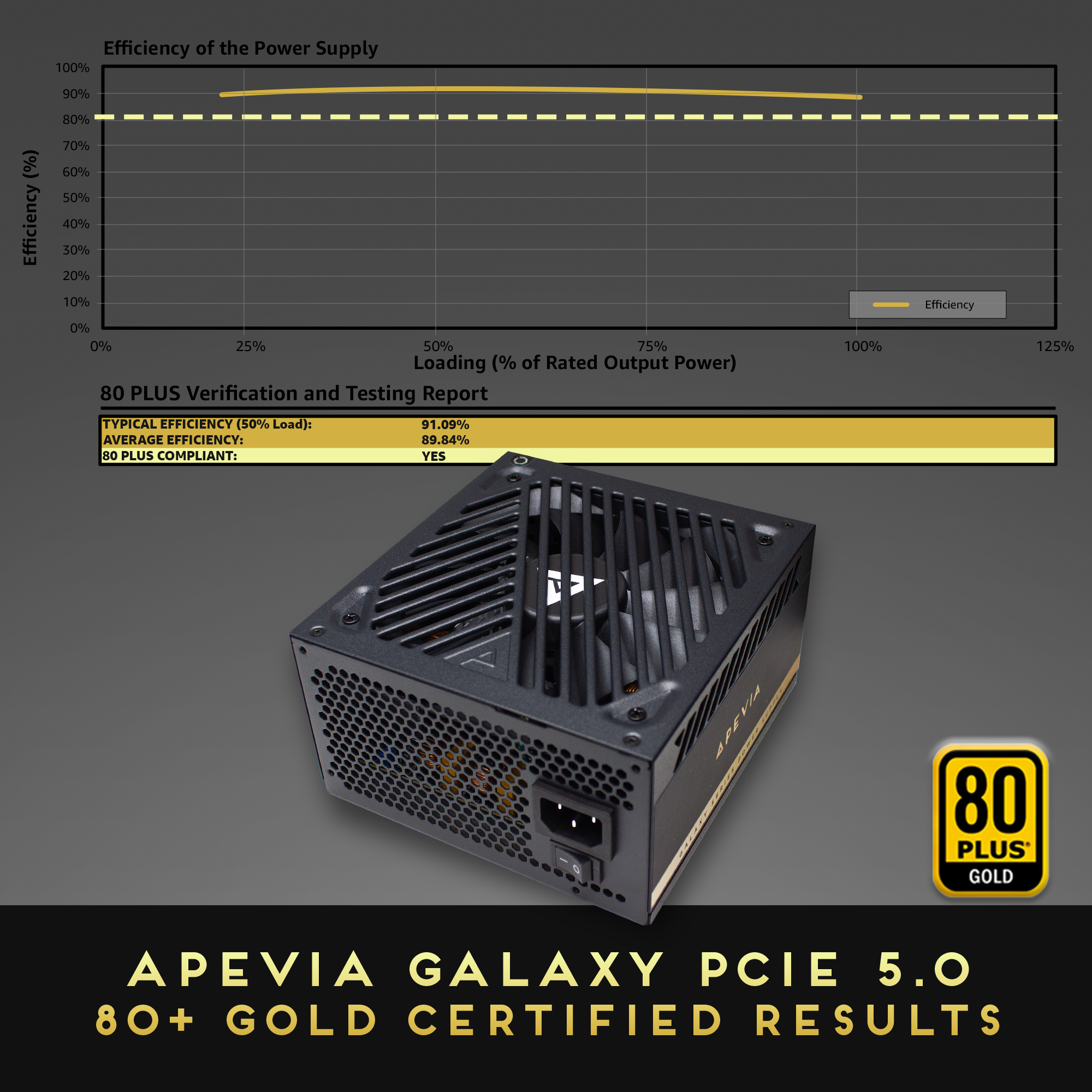

  • 80+ Gold certified
  • PCle 5.0 / Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 graphics cards
  • ATX 3.0 Ready
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • Hybrid modular cable design
  • High quality components and housing
  • 20 + 4 pin main connector can be used for 20 pin or 24 pin
  • 2 x 4/8 Pin ATX 12V connector
  • 1x PCle 5.0 / Gen 5 12VHPWR (12 pin+4 pin) GPU connector
  • 4 x 6+2 Pin PCI - Express
  • 4 x SATA connector
  • 4 x 4 pin peripheral connector
  • 1 x floppy connector
  • Each cable is removable
  • Cables and accessories
  • Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Model No.
ATX-GX1000W PCIE5.0
Max. Power
1000W
Material
Metal
Color
Black sandblasting coated case
Switches
N/A
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
Output
+3.3V=20A / +5V=20A / +12V=66A / -12V=0.3A / +5VSB=2.5A
Connectors
1 x 20/24pin Main Power / 2 x 4/8 pin + 12V and EPS / 1x PCle 5.0, Gen 5 12VHPWR (12 pin+4 pin) GPU connector / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
Cooling
Forced air ventilation by 1 x 135mm auto thermally controlled silent black fan
Dimension
160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
Weight
5 lbs
Package
6 pcs/carton
Cu'ft
1.94 (per carton)
