Power supply
1000W+

ATX-JP1000W ATX 3.0 + PCIE 5.0

1000W+

Apevia 1000W PCIe 5.0 Version Jupiter series power supply, 80+ Bronze certified, ATX 3.0 + PCIe 5.0 Ready, ROHS certified (Comes with PCle 5.0 / Gen 5 12VHPWR PSU connector)

user manual

Apevia's Jupiter PCIe 5.0 Version series power supply empowers your computer system with exceptional power and efficiency. With an 80+ Bronze certification and an emphasis on functionality, these power supplies breathe life into your setup. Equipped with the PCle 5.0 / Gen 5 12VHPWR PSU connector, they ensure seamless power delivery to advanced PCIe 5.0 high-end graphics cards. Designed to support the 12v2.3 standard and featuring a single rail setup, they are tailored for modern platforms. The inclusion of a silent 135mm black fan ensures optimal cooling for all internal components. The Apevia Jupiter line also incorporates Active PFC technology, boasting an impressive 99% factor correction, which enhances performance and conserves energy. You won't find a toggle switch here; the power supply automatically adjusts between 110V and 230V based on the connected power grid. Compliant with RoHS standards, these power supplies prioritize environmental responsibility. For safety purposes, please avoid overloading, abusing, or modifying the power supply unit. It's important to note that the power supply will not turn on unless all components are correctly connected to your PC.

  • 1000W Power with automatic thermally controlled 135mm black fan
  • 80+ Bronze & ROHS certified
  • PCle 5.0 / Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 graphics cards
  • ATX 3.0 Ready
  • Ample +12 V Output, enhanced +12 V current capability broadens utilization possibilities.
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing
  • Universal AC input by active PFC (99%PF Typical)
  • Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Model No.
ATX-JP1000W PCIE5
Max. Power
1000W
Material
Metal
Color
Cosmic black casing
Switches
N/A
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:8A for 115VAC, 4A for 230VAC
Output
+3.3V=20A / +5V=20A / +12V=66A / -12V=0.3A / +5VSB=2.5A
Connectors

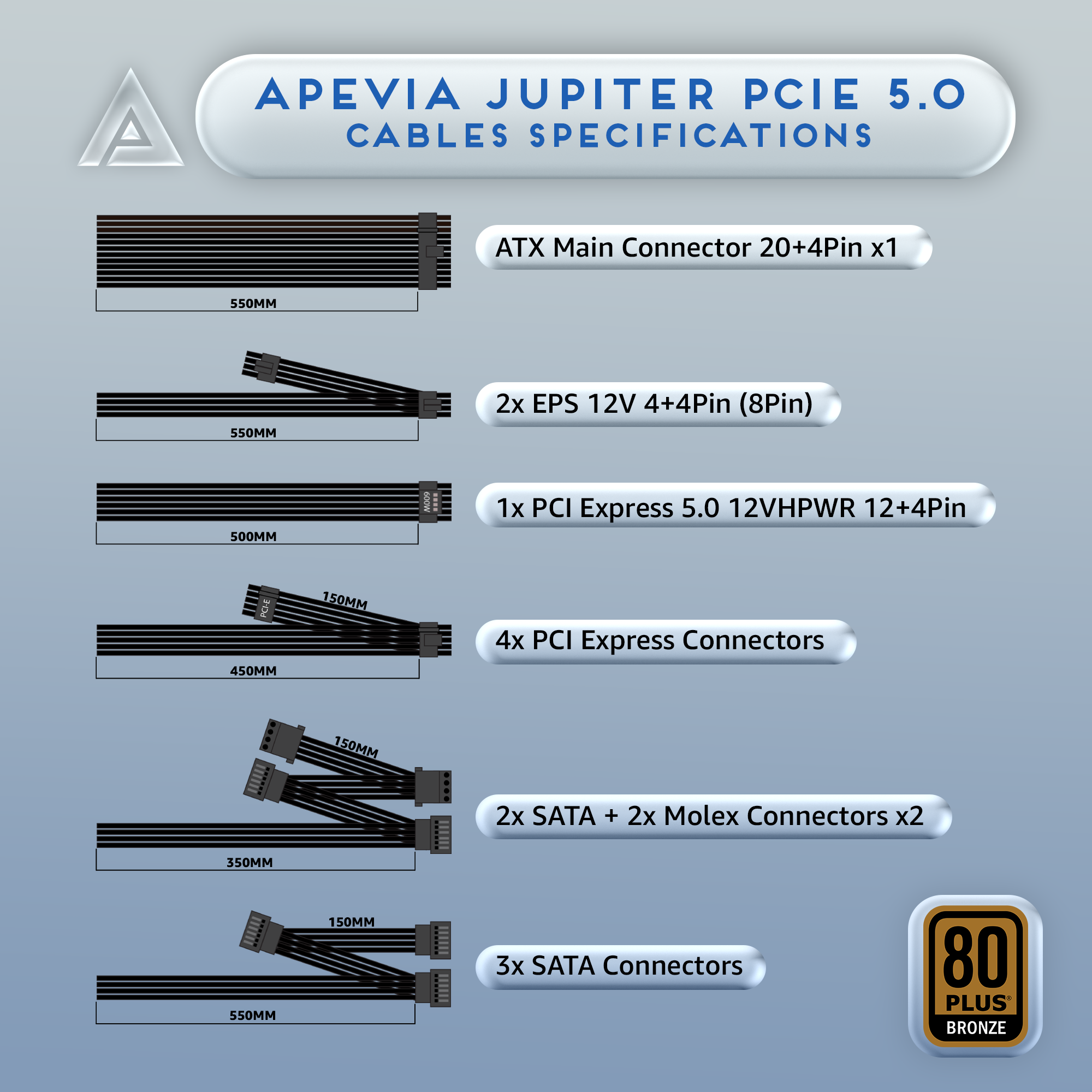

1 x 20/24pin Main Power, 2 x 4/8pin 12V, 1 x PCIe5.0 12+4pin, 4 x PCI 6+2pin, 7 x SATA, 4 x Peripheral
Cooling
Forced air ventilation by 1 x 135mm black fan
Dimension
158mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
Weight
4.85 pounds
Package
8 pcs/carton
Cu'ft
1.85 (per carton)
