Power supply
800W+

ATX-JP800W

800W+

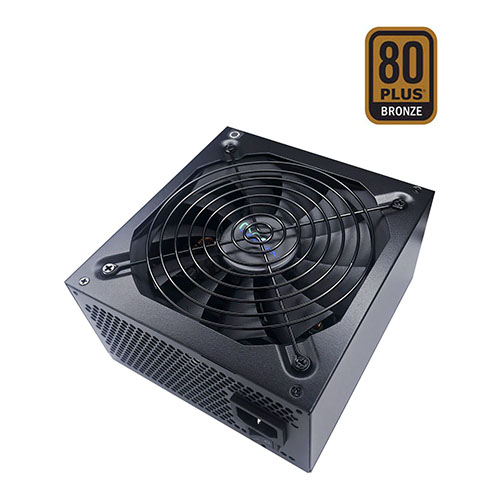

Apevia 800W Jupiter series power supply, 80+ Bronze certified

user manual

Apevia Jupiter series power supply is 80 Plus Bronze certified. It offers spellbinding performance for high-end PC gaming rigs and extreme systems that demand the most reliable and efficient energy source. This versatile PS supports NVidia SLI, as well as ATI crossfire and Haswell. The Jupiter series is also ideal for dual and quad core CPUs. The super-silent thermally controlled automatic sensor regulates fan speed while reducing noise. And a powerful 135mm black fan delivers outstanding ventilation.

  • 800W Power with 13.5cm black fan
  • 80+ Bronze certified
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing
  • Low noise auto-thermally control 135mm fan
  • Supports single 12v output for higher power usage
  • Universal AC input by active PFC (99%PF Typical)
  • Supports SLI, Crossfire & Haswell
  • 20 + 4 pin main connector can be used for 20 pin or 24 pin
  • 4/8 Pin ATX 12V connector
  • 4 x 6+2 Pin PCI - Express
  • 4 x SATA connector
  • 4 x 4 pin peripheral connector
  • 1 x floppy connector
  • Look at the label
  • Retail box
  • Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Model No.
ATX-JP800W
Max. Power
800W
Material
Metal
Color
Black sandblasting coated case
Switches
N/A
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:8A for 115VAC, 4A for 230VAC
Output
+3.3V=20A / +5V=20A / +12V=58A / -12V=0.3A / +5VSB=2.5A
Connectors

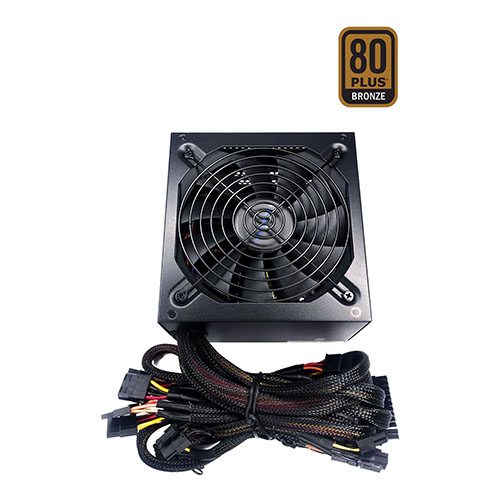

1 x 20/24pin Main Power / 1 x 4/8 pin + 12V and EPS / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
Cooling
Forced air ventilation by 1 x 135mm black fan
Dimension
160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
Weight
5.0 lbs
Package
10 pcs/carton
Cu'ft
1.94 (per carton)
