Power supply
1000W+

ATX-PM1200W ATX 3.0 & PCIE 5.0

1000W+

Apevia 1200W Premier series power supply, 80+ Gold certified, ATX 3.0 & PCIE 5.0 Ready, 366 RGB lighting modes, Includes Gen 5 12VHPWR (12pin+4pin) GPU connector, 135MM FDB (Fluid Dynamic Bearing) RGB fan, 100% high quality Japanese capacitors

user manual

Apevia's Premier 1200W line of power supplies is meticulously engineered to deliver exceptional gaming performance and enhanced sturdiness to meet the requirements of high-powered PC gaming systems. This gaming PSU is primed for PCle 5.0 & ATX 3.0 compatibility and proudly showcases an impressive 80+ Gold tested certification. It boasts 100% premium Japanese electrolytic capacitors, elevating its strength and reliability. The power supply comes equipped with the newest PCIE 5.0 Gen 5 12VHPWR 12+4 (12pin/16pin) GPU connector, guaranteeing seamless power delivery to cutting-edge PCIe 5.0 high-end graphics cards. Its streamlined 135mm auto-thermally regulated RGB fan, engineered with FDB (Fluid Dynamic Bearing), ensures outstanding cooling and extends the fan's life expectancy, while simultaneously offering an array of 366 vibrant RGB lighting modes to select from, creating a captivating luminous display. The Apevia Premier features a fully modular cable setup, allowing you to solely employ the indispensable connectors and streamlining wire organization. Unused plugs can be effortlessly stowed away for future needs. Furthermore, it incorporates Active PFC technology, boasting an impressive 99% power factor correction, augmenting efficiency and leading to significant energy savings. The power supply intelligently switches between 110V and 230V based on the power grid connection, eliminating the need for manual voltage adjustments. Additionally, the PSU flaunts an imprinted Apevia logo and a one-of-a-kind vent design, bestowing it with a deluxe touch. With 366 selectable lighting modes, including RGB Cycle, Breathe Cycle, Breathe Mode, RGB Mode, Solid Colors (Red, Blue, Green, Pink, Orange, White, Off Mode, and more), changing the lighting ambiance is as straightforward as pressing a button on the back of the power supply!

  • 1200W Power & 135mm FDB (Fluid Dynamic Bearing) RGB fan for superior cooling & longer fan life span.
  • 80+ Gold certified
  • Fully modular power supply design (Ability to connect only the essential cables)
  • ATX 3.0 + PCIE 5.0 Ready, includes Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 graphics cards
  • 366 RGB lighting modes (Hold RGB button until the 1st flash = Restart back to RGB Mode 1 / Hold RGB button until the 2nd flash = Off Mode)
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing (100% High quality Japanese capacitors)
  • 20 + 4 pin main connector can be used for 20 pin or 24 pin
  • 1x Modular PCle 5.0 / Gen 5 12VHPWR (12 pin+4 pin) GPU connector
  • Each cable is removable
  • Cables and accessories
  • Complete heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

Model No.
ATX-PM1200W ATX 3.0 & PCIE5.0
Max. Power
1200W
Material
Metal
Color
Black sandblasting coated case
Switches
RGB LED Switch Button
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
Output
+3.3V=20A / +5V=20A / +12V=83.3A / -12V=0.3A / +5VSB=3A
Connectors

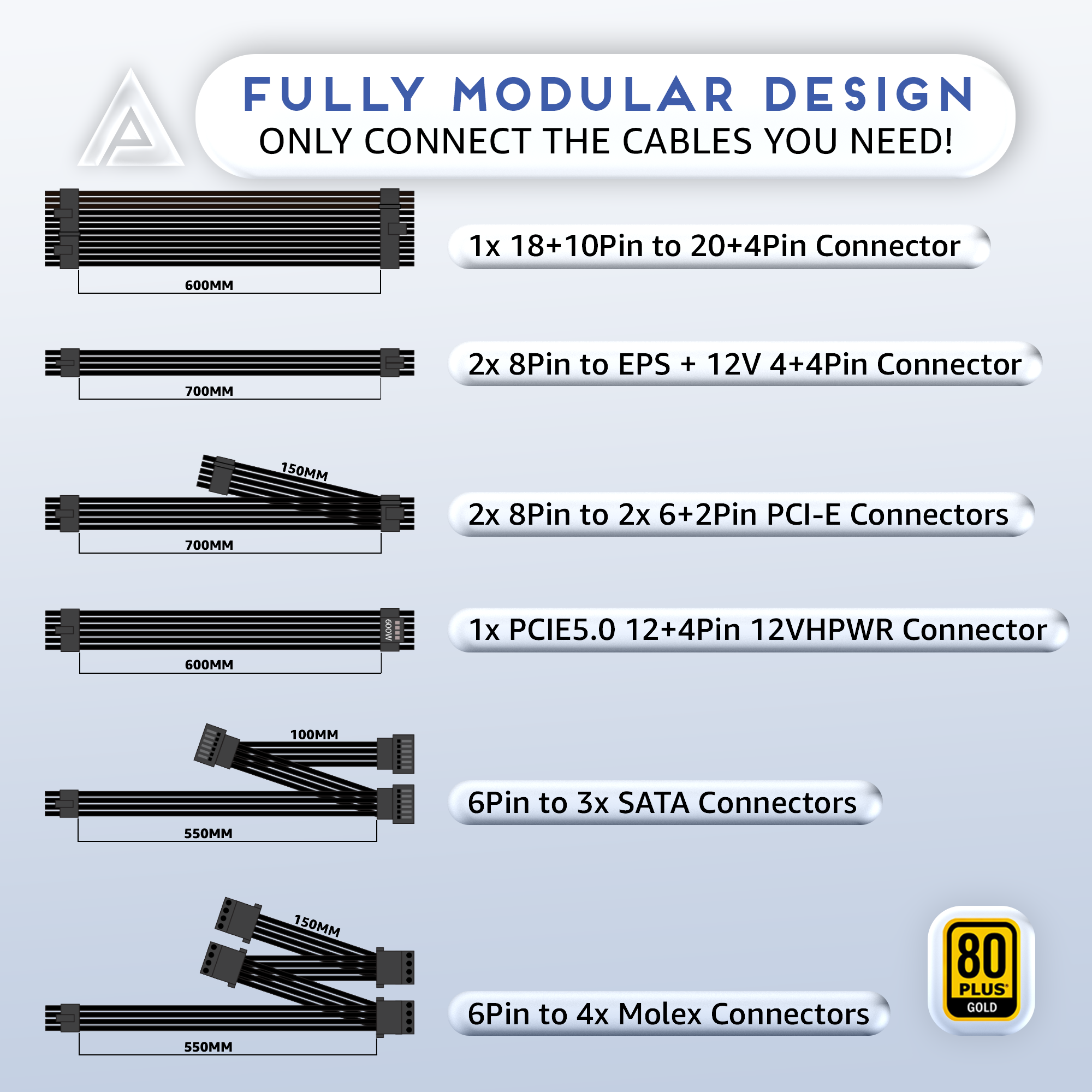

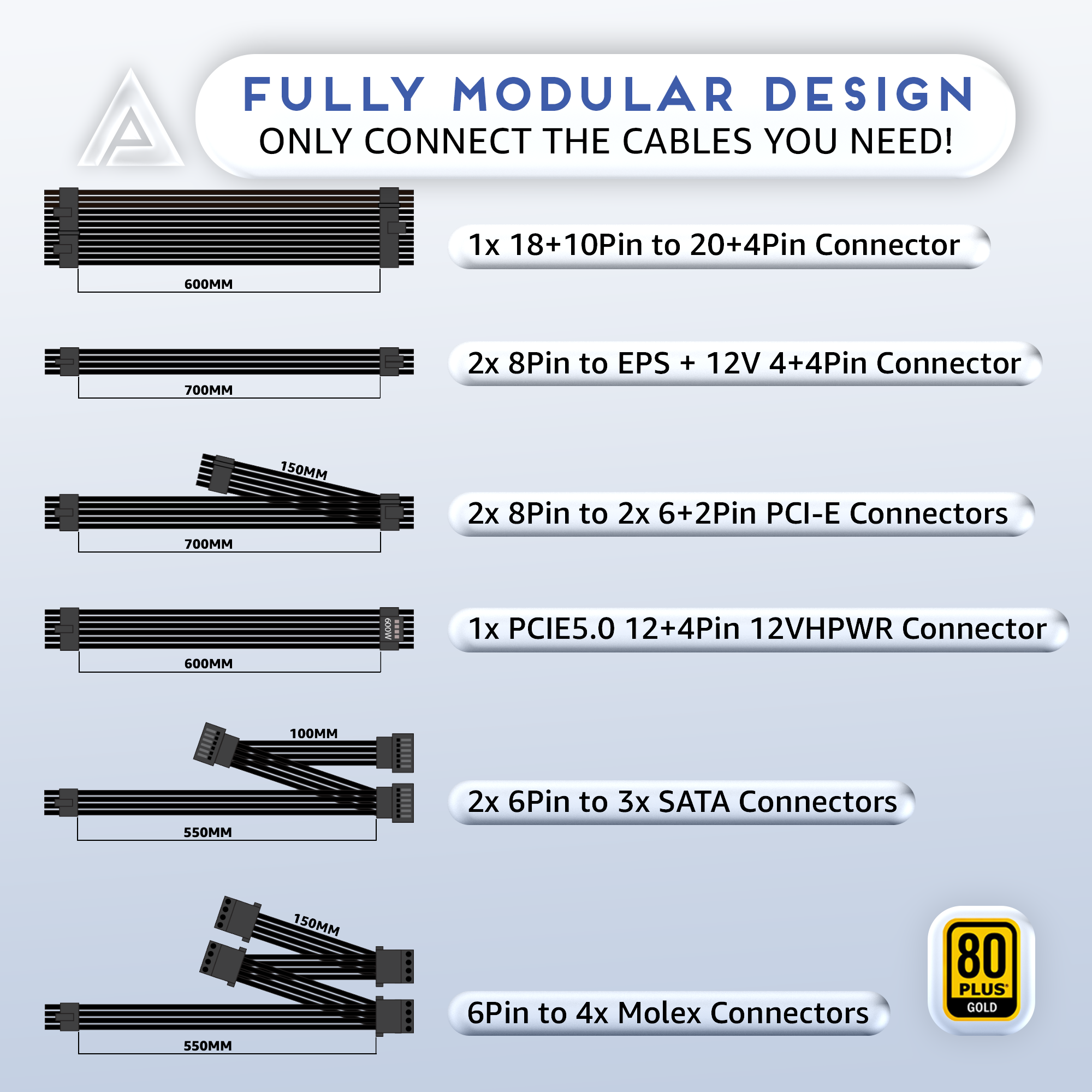

1 x (18+10) 28Pin to (20+4) 24Pin Main Power, 2x 8Pin to (4+4) 8Pin EPS 12V, 2x 8Pin to 2x (6+2) 8Pin PCI Express, 1x PCIE5.0 (12+4) 16Pin 12VHPWR, 2x 6Pin to 3x SATA, 1x 6Pin to 4x Molex
Cooling
Forced air ventilation by 1 x 135mm FDB (Fluid Dynamic Bearing) RGB fan
Dimension
280mm x 190mm x 114mm (11" x 7.5" x 4.5") - L x W x H
Weight
6.80 lbs
Package
6 pcs/carton
Cu'ft
0.206 (per box)
