Power supply
1000W+

ATX-PR1000W-WH ATX 3.0 + PCIE 5.0

1000W+

Apevia 1000W PCIe 5.0 Version Prestige white edition power supply, 80+ Gold certified, ATX 3.0 + PCIe 5.0 Ready, ROHS certified (Comes with PCle 5.0 / Gen 5 12VHPWR PSU connector), Sleek full white casing, 135MM auto thermal fan, all white cables / connectors

user manual

Apevia’s Prestige PCIe 5.0 White edition series line of power supplies brings great power and efficiency to your computer system while offering a clean full white aesthetic look to your setup. 80+ Gold certified, and designed for elegant form and function, they bring it to life. This power supply includes the PCle 5.0 / Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 high end graphics cards. Supporting the 12v2.3 standard and single rail setup, it’s updated for modern platforms. Boasting a 135mm silent white fan, it keeps everything inside cool. The Prestige line also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. RoHS compliance. For safety, do not overload, abuse or modify the power supply unit. NOTE: Power supply will not turn out if you do not connect everything correctly into your PC

  • 1000W Power with 13.5cm white fan
  • Full white casing power supply
  • Sleek all white cables / connectors
  • 80+ Gold & ROHS certified
  • PCle 5.0 / Gen 5 12VHPWR PSU connector to deliver power to the most advanced PCIe 5.0 graphics cards
  • ATX 3.0 Ready
  • Ample +12 V Output, enhanced +12 V current capability broadens utilization possibilities.
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing
  • Universal AC input by active PFC (99%PF Typical)
  • Package contents
  • Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Model No.
ATX-PR1000W-WH PCIE5
Max. Power
1000W
Material
Metal
Color
White casing
Switches
N/A
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:8A for 115VAC, 4A for 230VAC
Output
+3.3V=20A / +5V=20A / +12V=66A / -12V=0.3A / +5VSB=2.5A
Connectors

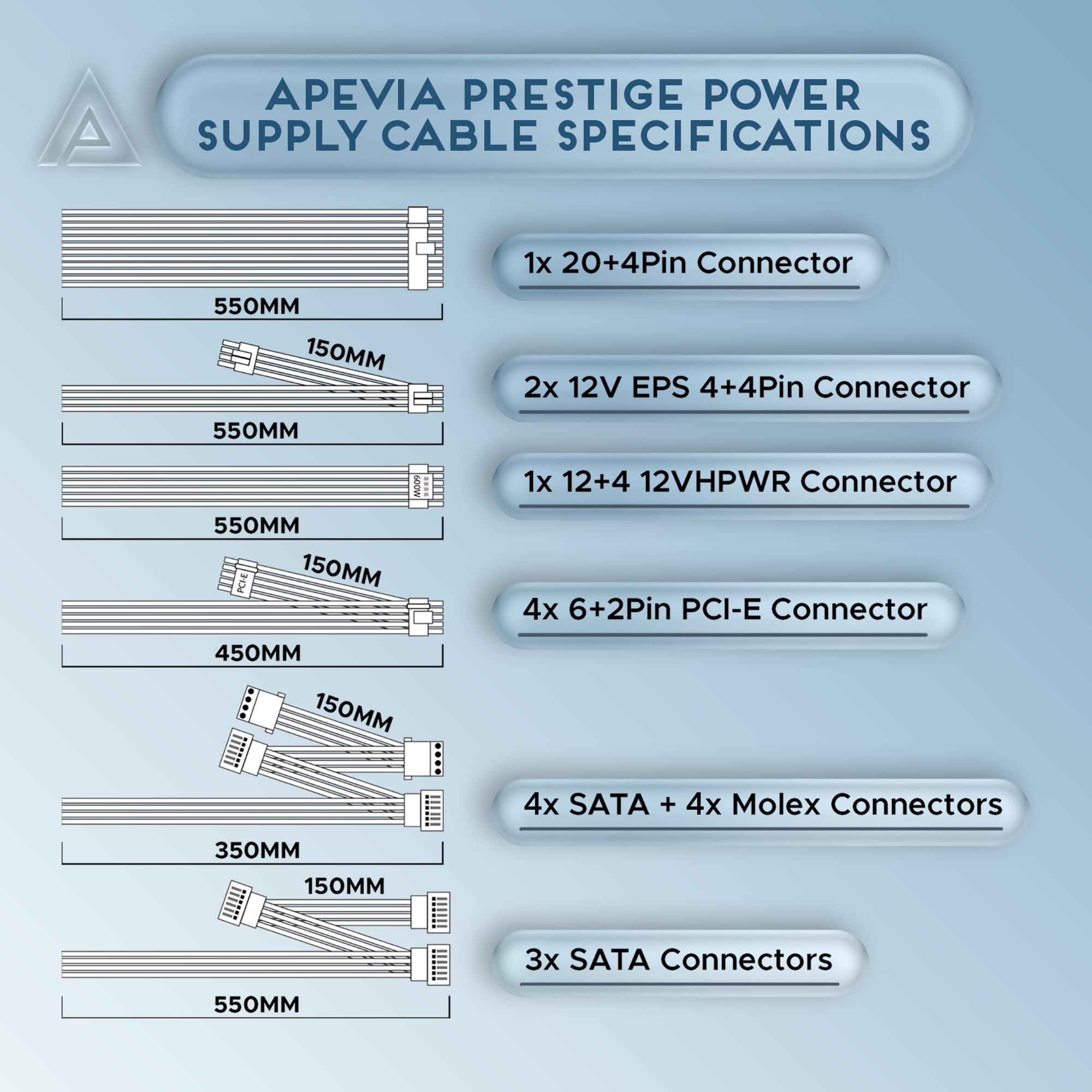

1 x 20/24pin Main Power, 2 x 4/8pin 12V, 1 x PCIe5.0 12+4pin, 4 x PCI 6+2pin, 5 x SATA, 2 x Peripheral
Cooling
Forced air ventilation by 1 x 135mm white fan
Dimension
158mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
Weight
5.0 lbs
Package
10 pcs/carton
Cu'ft
1.85 (per carton)
