Power supply
1000W+

ATX-SN1050W

1000W+

Apevia 1050W Signature series power supply, 80+ Bronze certified

user manual

Apevia's Signature line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool blue 135mm LED fan, it adds a nice glow to any computer. The Signature line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Bronze certified.

  • 1050W Power with 13.5cm blue LED fan
  • 80+ Bronze certified
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • Hybrid modular cable design
  • High quality components and housing
  • 20 + 4 pin main connector can be used for 20 pin or 24 pin

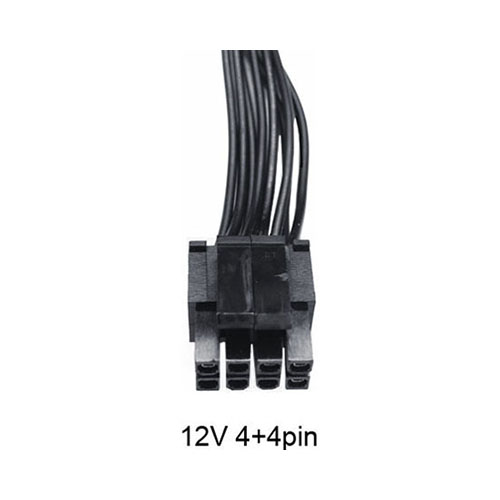

  • 4/8 Pin ATX 12V connector
  • 4 x 6+2 Pin PCI - Express
  • 4 x SATA connector
  • 4 x 4 pin peripheral connector

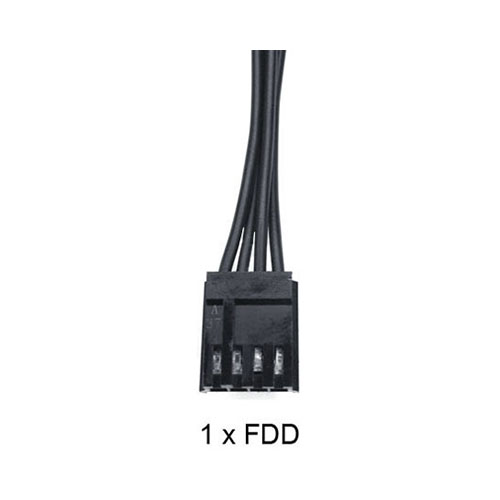

  • 1 x floppy connector
  • Each cable is removable
  • Cables and accessories
  • Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Model No.
ATX-SN1050W
Max. Power
1050W
Material
Metal
Color
Black sandblasting coated case
Switches
N/A
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:10A for 115VAC, 5A for 230VAC
Output
+3.3V=20A / +5V=20A / +12V=78A / -12V=0.3A / +5VSB=2.5A
Connectors
1 x 20/24pin Main Power / 1 x 4/8 pin + 12V and EPS / 4 x SATA / 4 x Peripheral / 1 x Floppy / 4 x 6+2pin PCI Express
Cooling
Forced air ventilation by 1 x 135mm blue LED fan
Dimension
160mm x 150mm x 85mm (6.3" x 5.9" x 3.4") - L x W x H
Weight
5.0 lbs
Package
10 pcs/carton
Cu'ft
1.94 (per carton)
