Power supply
600W+

ATX-SP600W

600W+

Apevia 600W Spirit series power supply

user manual

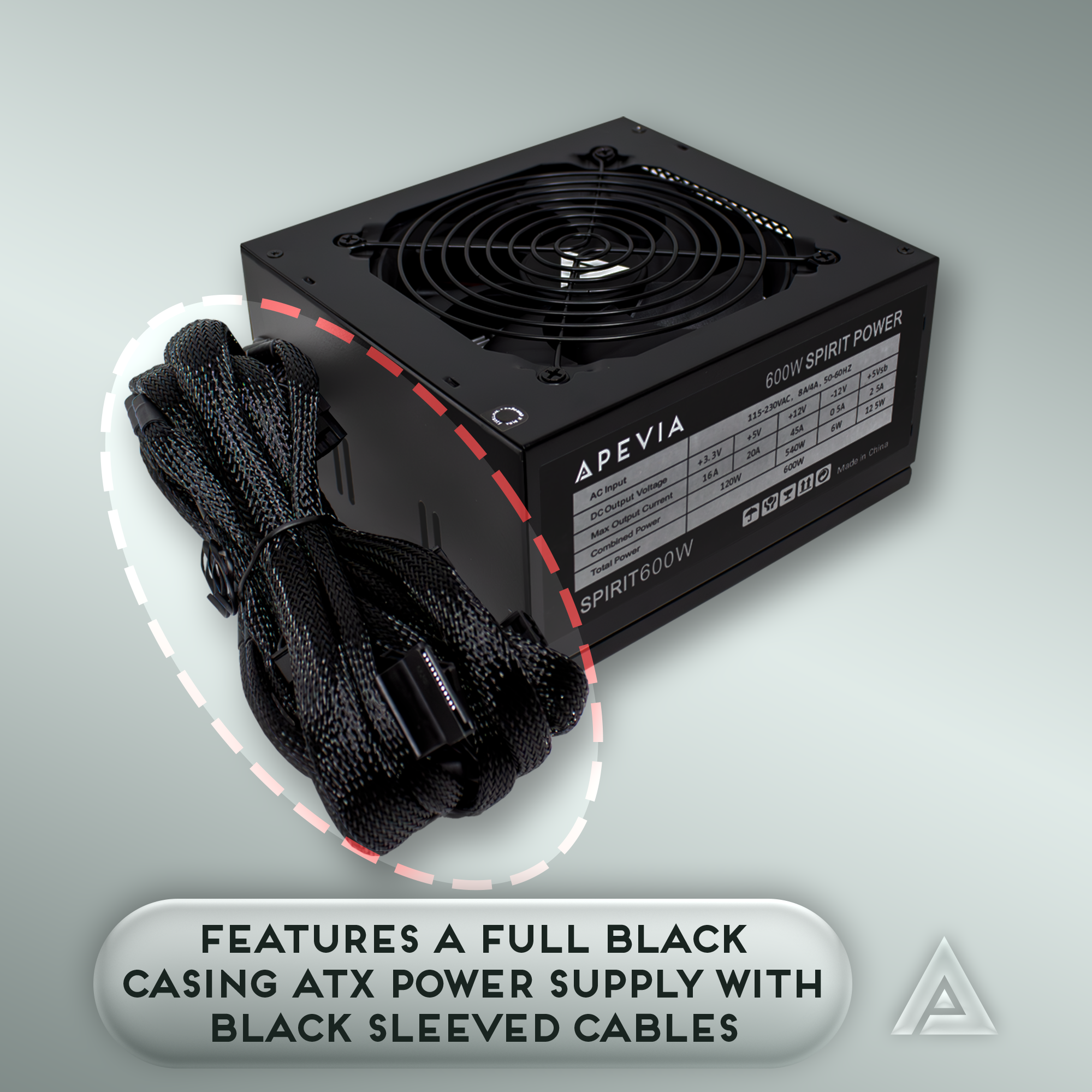

Apevia’s Spirit line of power supplies bring form and function to your system, providing high efficiency with a basic black look that fits ATX computer builds. It supports the modern 12v2.3 power standard with a single 12V rail setup. Boasting a silent 120mm black fan, it keeps everything inside the system cool. Comes with enough cables to connect all the devices you might need. The ATX-SP600W power supply is perfect for mid-range builds for both business and gaming use.

  • 600W Power with 12cm black fan
  • Supports single 12v output for higher power usage
  • Supports SLI, Crossfire & Haswell
  • Supports Dual/Quad/Multi Core CPUs
  • Supports ATX 12v 2.3 version

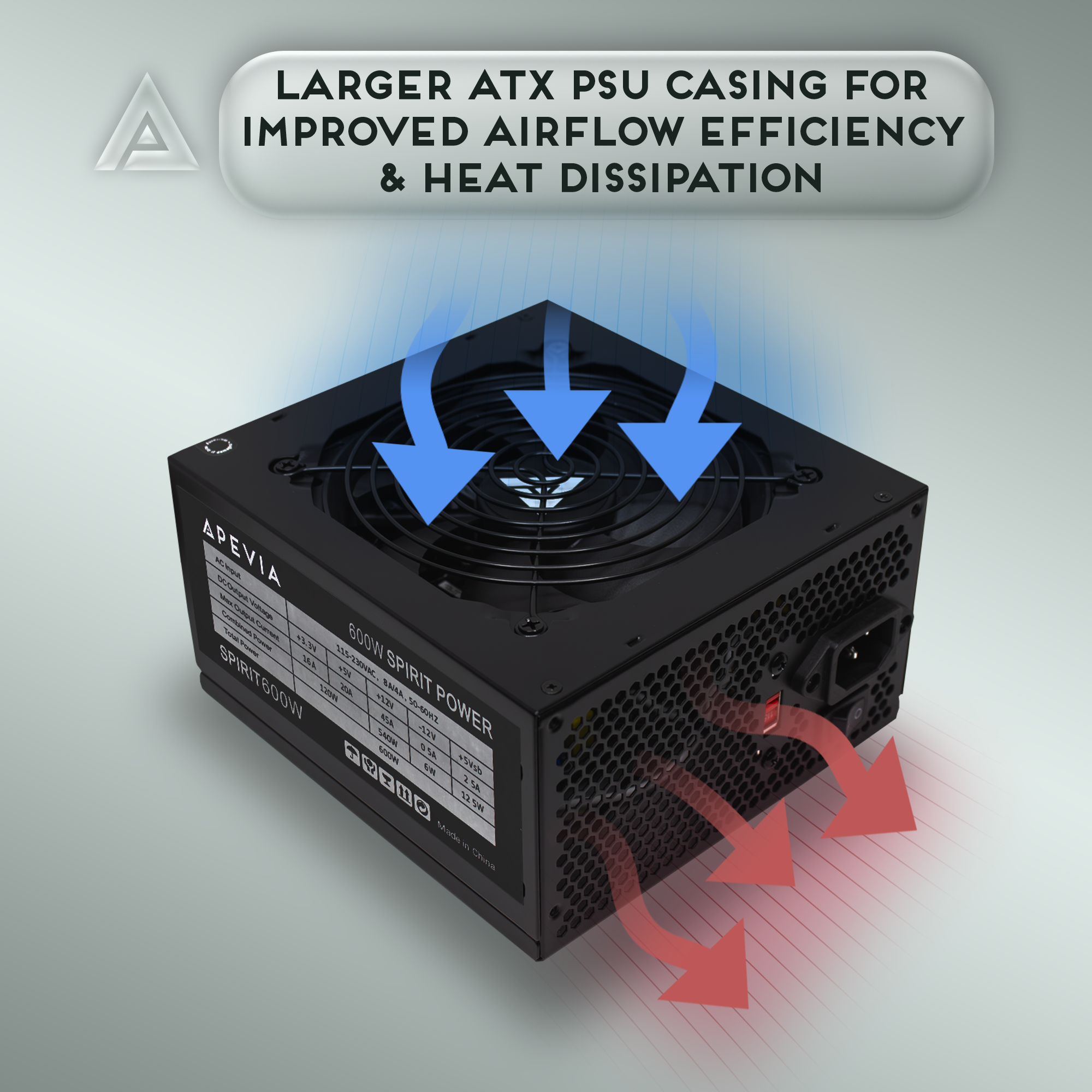

  • Low noise auto-thermally control 120mm fan
  • Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)

IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on

IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.

IMPORTANT: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.

IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector

Model No.
ATX-SP600W
Max. Power
600W
Material
Metal
Color
Black sandblasting coated case
Switches
Additional power rocker switch 115/230 Volt selector switch
Input
Voltage ranges:115-230V / Input freguency:50-60Hz / Input current:8A for 115VAC, 4A for 230VAC
Output
+3.3V=16A / +5V=20A / +12V=45A / -12V=0.5A / +5VSB=2.5A
Connectors

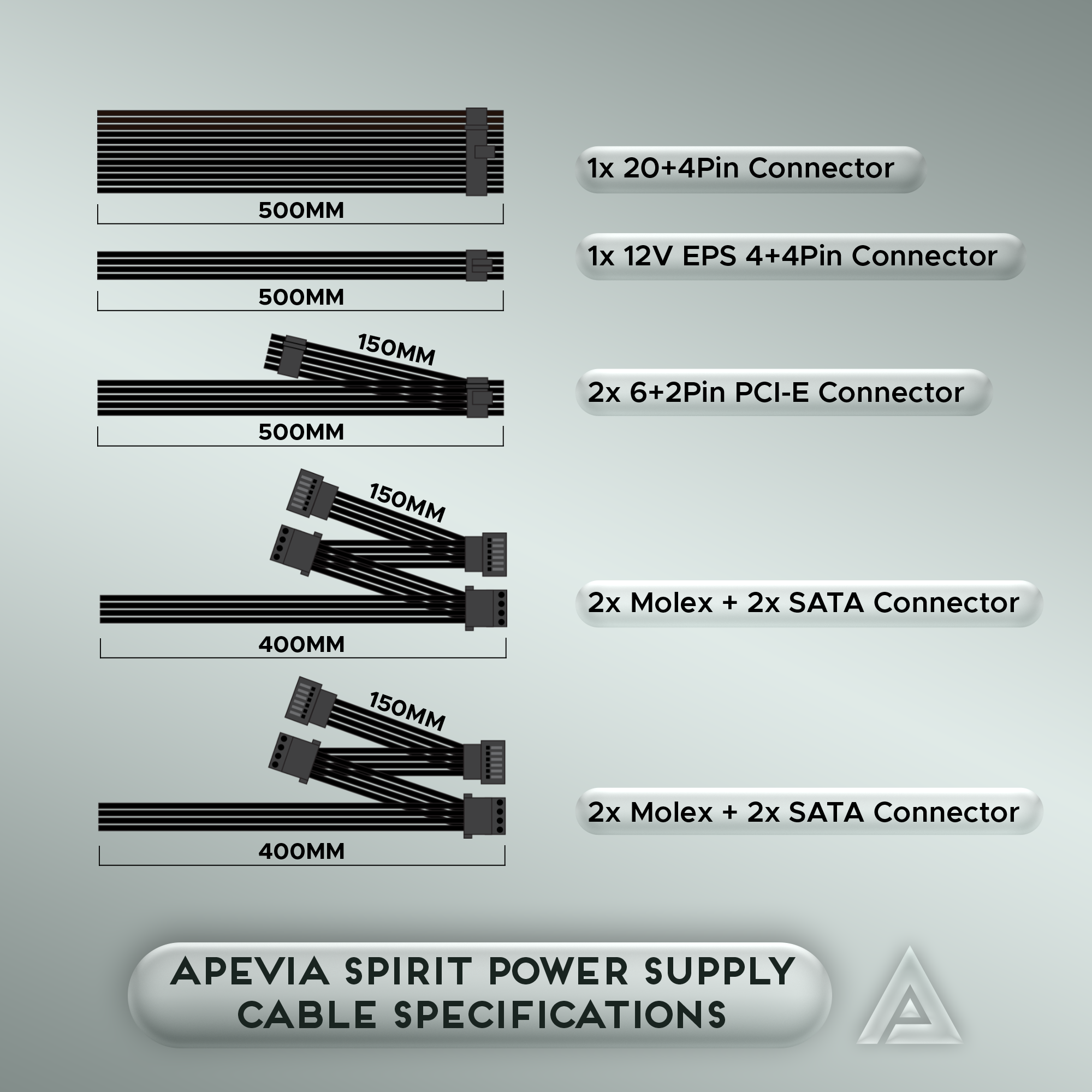

1 x 20/24pin Main Power / 1 x 4/8 pin + 12V and EPS / 4 x SATA / 4 x Peripheral / 2 x 6+2pin PCI Express
Cooling
Forced air ventilation by 1 x 120mm black fan
Dimension
150mm x 160mm x 85mm (5.9" x 6.25" x 3.4") - L x W x H
Weight
3.5 lbs
Package
10 pcs/carton
Cu'ft
1.83 (per carton)
