Power supply
600W+

SFX-AP600W

600W+

‏‏‎

user manual

Apevia SFX-AP600W power supply is an excellent choice for compact, small form factor systems. With 600W of steady output power, plentiful of cable connectors and a built-in 80mm automatically thermal sensing fan, it is sufficient and quiet to run a new built system or to replace a lagging/bad power supply in an older small form factor system.with a wide range of peripherals and versatile applications. IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

  • Apevia 600W SFX Power Supply
  • Another view of the power supply
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • Supports single 12v output for higher power usage
  • Look at the label
  • Retail box

IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on

IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.

IMPORTANT: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.

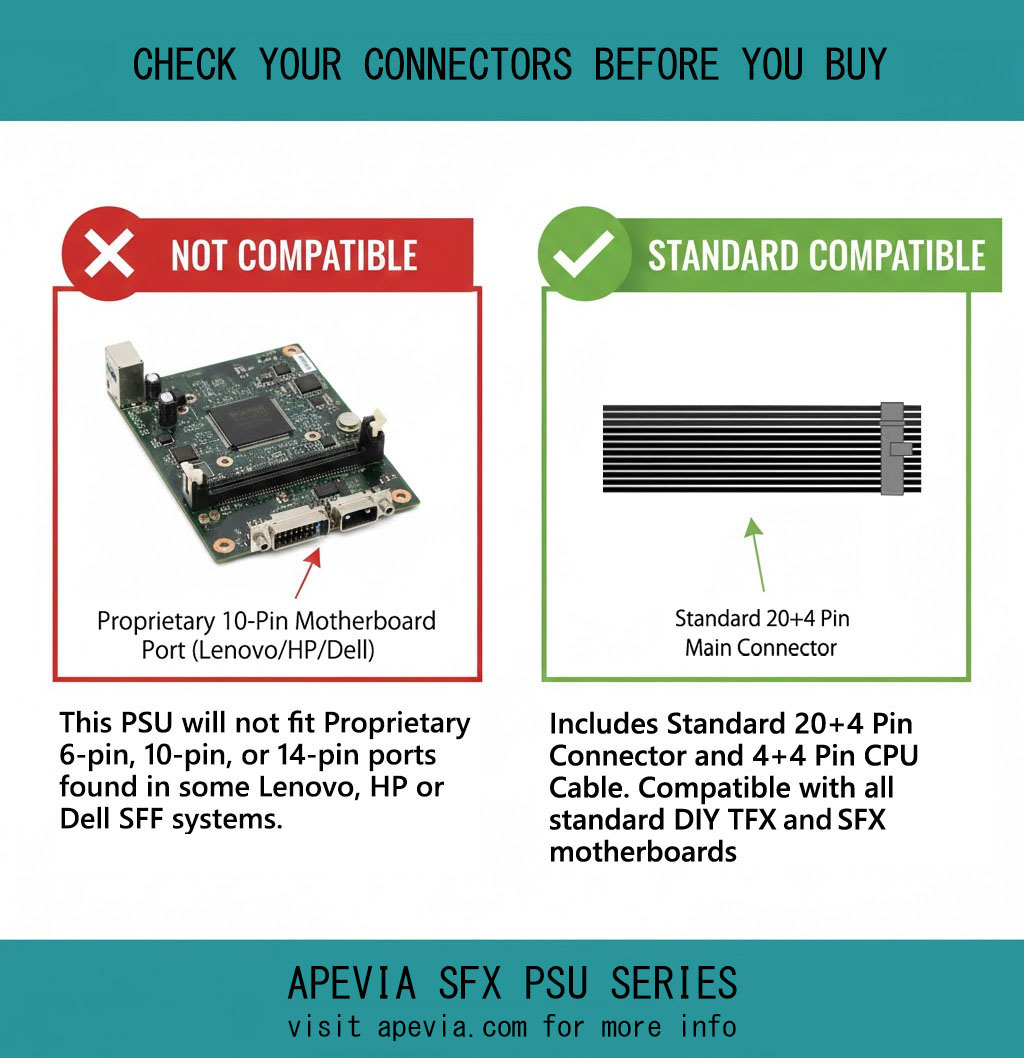

IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector

Model No.
SFX-AP600W
Max. Power
600W
Material
0.5mm Metal Casing
Color
Black Matte Coating
Switches
Additional Power Switch 115/230 Volt Selector Switch
Input
Voltage ranges:115-230V / Input freguency:60/50Hz / Input current:8A for 115V AC, 4A for 230V AC
Output
+3.3V=12A / +5V=14A / +12V=33A / -12V=0.3A / +5VSB=2.5A
Connectors
1 x 20/24pin Main Power / 1 x 8pin (4+4pin)12V / 2 x PCIe 6+2Pin / 3 x SATA / 3 x Molex
Cooling
1 x 80mm Automatically Thermal Sensing Fan
Dimension
125mm x 100mm x 63.5mm (4.92" x 3.94" x 2.5") - L x W x H
Weight
2.1 lbs
Package
10 pcs/carton
Cu'ft
1.9 (per carton)
